LV Fuses for ESS (Energy Storage System)
  • LV Fuses for ESS (Energy Storage System)
  • LFR15XL5-xxxxA-FE series×

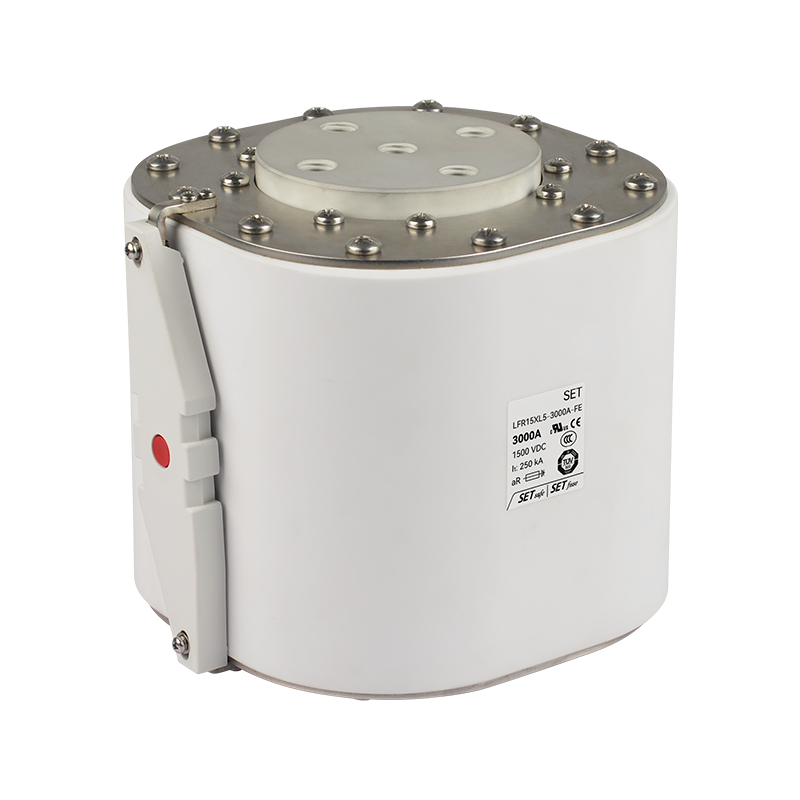

LFR15XL5-xxxxA-FE series

Rated Voltage (Un): 1500 VDC

Rated Current (In): 1800 ~ 3000 A

Breaking Capacity (I1): 250 kA

Utilization Category: aR

Datasheet

2024-2026 Year Version.

LV Fuses LFR15XL5(1500 VDC, 1800~3000 A)_SETsafe & SETfuse.pdf


Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● Rated Voltage: 1500 VDC

● Breaking Capacity: 250 kA

● Fusing Characteristics: High Speed Fuse

● Utilization Category: aR

● Good Current Limiting Capability

● Body Size: 159 x 159 x 178 mm (5#)

● RoHS and REACH Compliant, Pb Free

Termination Style

Threaded Socket

Applications

● Solar Inverter System

● Energy Storage System (ESS) Converters

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com


CCC (China):

Standards: GB/T 13539.4

File No.: 2025010308759660

CCC_LFR15XL5_SETsafe & SETfuse.pdf


UL (America):

Standards: UL 248-13

File No.: E532248

UL_LFR15XL5_SETsafe & SETfuse.pdf


cUL (Canada):

Standards: UL 248-13

File No.: E532248

cUL_LFR15XL5_SETsafe & SETfuse.pdf


TUV (Germany):

Standards: IEC 60269-4

File No.: B 107221 0010

TUV_LFR15XL5_SETsafe & SETfuse.pdf


CE (EU):

Standards: IEC 60269-4

File No.: N8A 107221 0011

CE_LFR15XL5_SETsafe & SETfuse.pdf

Customization

If you want to customize the product, please communicate with SETsafe |SETfuse.

Quality Assurance

High Quality, High Reliability.
