LV Fuses for EV Charging
  • LV Fuses for EV Charging
  • LFR1-xxxA10-xx series×

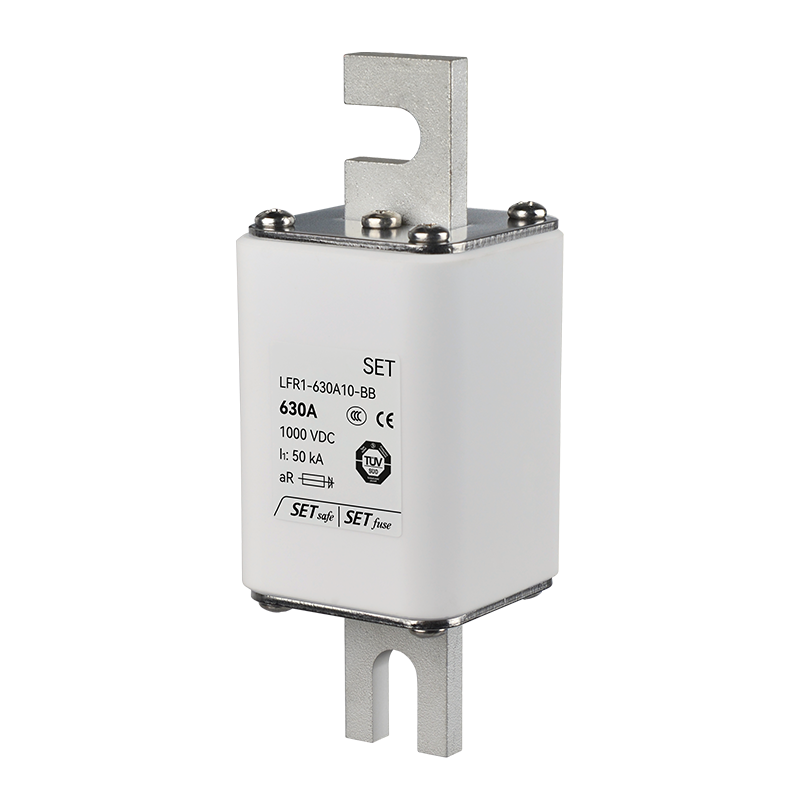

LFR1-xxxA10-xx series

Rated Voltage (Un): 1000 VDC

Rated Current (In): 400 ~ 630 A

Breaking Capacity: 50 kA

Utilization Category: aR

Datasheet

2024-2026 Year Version.

LV Fuses_LFR1-xxxA10-xx(1000 VDC, 400~630 A)_SETsafe & SETfuse.pdf


Datasheet (PDF Document) Include: Specifications, Agency Approvals, Packaging, Structure Diagrams, Glossary, Part Numbering System, Installation, Usage, Replace, Storage and other information.

Manufacturer

Xiamen SET Electronics Co., Ltd.

Features

● Rated Voltage: 1000 VDC

● Breaking Capacity: 50 kA

● Fusing Characteristics: High Speed Fuse

● Utilization Category: aR

● Good Current Limiting Capability

● Body Size: 83 x 51 x 51 mm (1#)

● Indicator Optional

● RoHS and REACH Compliant, Pb Free

Mounting Style

Bolt Blade, Flat Bolt, Flush End

Applications

● Battery Energy Storage System (BESS)

● Power Conversion Systems

● DC Common Bus Systems

● DC Charging Pile

Design Standards & Agency Approvals

ABSOLUTELY ASSURED USE WITH GLOBALIZATION CERTICATION

The following certificates (PDF Documents) are only used for browsing on the web to prove the product has been certified. If you need a full version certificate, Please contact: sales@SETfuse.com


CCC

Standards: GB/T 13539.4


 TUV

Standards: EN IEC 60269-4

Quality Assurance

High Quality, High Reliability.
